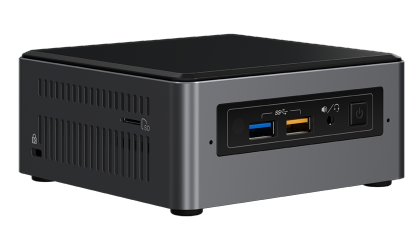

Intel® NUC Kit NUC7i7BNH Essentials Product Collection Intel® NUC Kits Status Launched Launch Date Q1'17 Expected Discontinuance See Roadmap Socket Soldered-down BGA # of Internal Drives Supported 2 TDP 28 W Warranty Period 3 yrs Code Name Products formerly Baby Canyon Board Form Factor UCFF (4" x 4") Internal Drive Form Factor M.2 and 2.5" Drive Lithography 14 nm DC Input Voltage Supported 12-19 VDC Processor Included Intel® Core™ i7-7567U Processor (4M Cache, up to 4.00 GHz) Supplemental Information Embedded Options Available No Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones Memory Specifications Max Memory Size (dependent on memory type) 32 GB Max # of Memory Channels 2 Max # of DIMMs 2 Memory Types DDR4-2133 1.2V SO-DIMM Max Memory Bandwidth 34.1 GB/s ECC Memory Supported ‡ No Graphics Specifications Integrated Graphics ‡ Yes # of Displays Supported ‡ 3 Graphics Output HDMI 2.0a; USB-C (DP1.2) Expansion Options PCI Express Revision Gen3 Removable Memory Card Slot SDXC with UHS-I support PCI Express Configurations ‡ M.2 slot with PCIe x4 lanes M.2 Card Slot (storage) 22x42/80 I/O Specifications USB Revision 2.0, 3.0 USB 2.0 Configuration (External + Internal) 0 + 2 Total # of SATA Ports 2 RAID Configuration 2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) Integrated LAN 10/100/1000 Integrated Bluetooth Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL # of USB Ports 6 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Max # of SATA 6.0 Gb/s Ports 2 Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R+mic (F) Integrated Wifi Intel® Wireless-AC 8265 + BT 4.2 Consumer Infrared Rx Sensor Yes Package Specifications Low Halogen Options Available See MDDS Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes TPM No Intel® Rapid Storage Technology Yes Intel® Platform Trust Technology (Intel® PTT) Yes Intel® vPro Technology ‡ No Intel® HD Audio Technology Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Data Protection Technology Intel® AES New Instructions Yes Products Intel® NUC with 11th Generation Processor Intel® NUC kit NUC11PAHi3 Intel® NUC kit NUC11PAHi5 Intel® NUC kit NUC11PAHi7 Intel® NUC with 10th Generation Processor Intel® NUC kit NUC10i3FNH Intel® NUC kit NUC10i5FNH Intel® NUC kit NUC10i7FNH Intel® NUC with 8th Generation Processor Intel® NUC kit NUC8i3BEH Intel® NUC kit NUC8i3BEK Intel® NUC kit NUC8i5BEH Intel® NUC kit NUC8i5BEK Intel® NUC kit NUC8i7BEH Intel® NUC with 7th Generation Processor Intel® NUC kit NUC7CJYH Intel® NUC kit NUC7i3BNH Intel® NUC kit NUC7i3BNK Intel® NUC kit NUC7i3DNHE Intel® NUC kit NUC7i3DNKE Intel® NUC kit NUC7I7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i5BNK Intel® NUC kit NUC7i5DNHE Intel® NUC kit NUC7i5DNKE Intel® NUC kit NUC7i7BNH Intel® NUC kit NUC7i7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i7DNHE Intel® NUC kit NUC7i7DNKE Intel® NUC kit NUC7PJYH Intel® NUC with 6th Generation Processor Intel® NUC kit NUC6CAYH Intel® NUC kit NUC6CAYS Intel® NUC kit NUC6i3SYH Intel® NUC kit NUC6i3SYK Intel® NUC kit NUC6i5SYH Intel® NUC kit NUC6i5SYK Intel® NUC kit NUC6i7KYK Intel® NUC with 5th Generation Processor Intel® NUC kit NUC5CPYH Intel® NUC kit NUC5i3MYHE Intel® NUC kit NUC5i3RYH Intel® NUC kit NUC5i3RYK Intel® NUC kit NUC5i5MYHE Intel® NUC kit NUC5i5RYH Intel® NUC kit NUC5i5RYK Intel® NUC kit NUC5i7RYH Intel® NUC kit NUC5PGYH Intel® NUC kit NUC5PPYH
