Intel NUC Systems

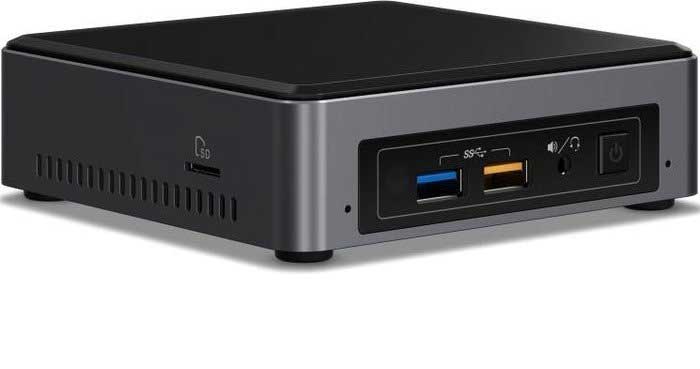

Intel® NUC Kit NUC7i3BNK


Essentials
Product Collection Intel® NUC Kits
Status Launched
Expected Discontinuance
See Roadmap
Socket Soldered-down BGA
# of Internal Drives Supported 1
TDP 15 W
Warranty Period 3 yrs
Code Name Products formerly Baby Canyon
Launch Date Q1'17
Board Form Factor UCFF (4" x 4")
Internal Drive Form Factor
M.2 SSD
Lithography 14 nm
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Supplemental Information
Embedded Options Available No
Description Other features: Includes USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Max # of Memory Channels 2
Max # of DIMMs 2
Memory Types DDR4-2133 1.2V SO-DIMM
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ No
Graphics Specifications
Integrated Graphics ‡ Yes
# of Displays Supported ‡ 3
Graphics Output HDMI 2.0 a; USB-C (DP1.2)
Expansion Options
PCI Express Revision Gen3
Removable Memory Card Slot SDXC with UHS-I support
PCI Express Configurations ‡ M.2 slot with PCIe x4 lanes
M.2 Card Slot (storage) 22x42/80
I/O Specifications
USB Revision 2.0, 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
Total # of SATA Ports 2
Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R+mic (F)
Integrated Wifi Intel® Wireless-AC 8265 + BT 4.2
Consumer Infrared Rx Sensor Yes
# of USB Ports 6
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Max # of SATA 6.0 Gb/s Ports 2
Integrated LAN 10/100/1000
Integrated Bluetooth Yes
Additional Headers CEC, 2x USB2.0, FRONT_PANEL
Package Specifications
Low Halogen Options Available MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
TPM No
Intel® Rapid Storage Technology Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Intel® vPro Technology ‡ No
Intel® HD Audio Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Data Protection Technology
Intel® AES New Instructions Yes
