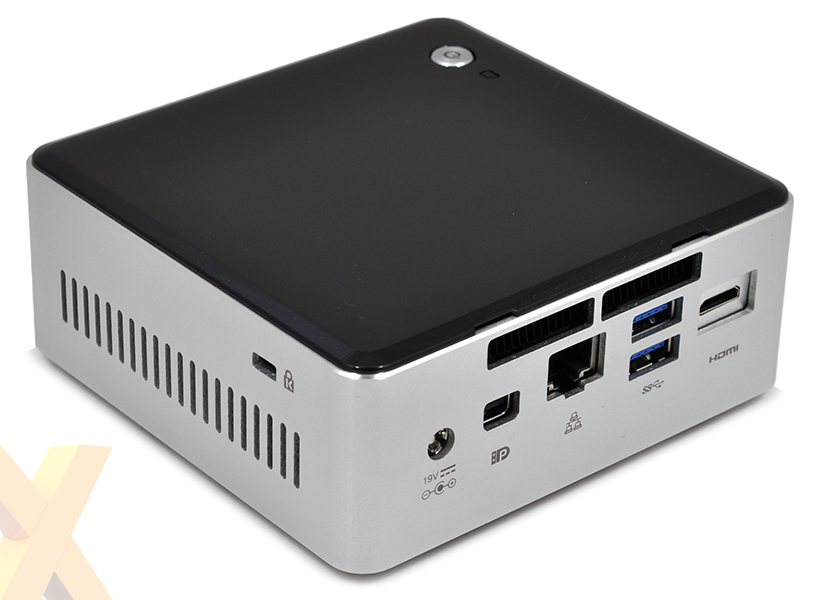

Intel® NUC Kit NUC5i5RYH


Essentials
Product Collection Intel® NUC Kits
Code Name Products formerly Rock Canyon
Status
Launched
Launch Date Q1'15
Expected Discontinuance See Roadmap
Board Form Factor UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
Lithography 14 nm
TDP 15 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Core™ i5-5250U Processor (3M Cache, up to 2.70 GHz)
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 16 GB
Memory Types
DDR3L-1333/1600 1.35V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Graphics Specifications
Integrated Graphics ‡ Yes
Graphics Output Mini-DP 1.2; Mini-HDMI 1.4a
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision Gen2
PCI Express Configurations ‡ M.2 slot with PCIe x4 lane
M.2 Card Slot (storage) 22x42/60/80
I/O Specifications
USB Revision 2.0, 3.0
# of USB Ports 6
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (mHDMI mDP); L+R+mic (F)
Integrated LAN 10/100/1000
Integrated Wifi Intel® Wireless-AC 7265 + BT 4.2
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor Yes
Additional Headers 2x USB2.0, AUX_PWR
Package Specifications
Low Halogen Options Available
See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® vPro™ Technology‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Intel® Data Protection Technology
Intel® AES New Instructions Yes
