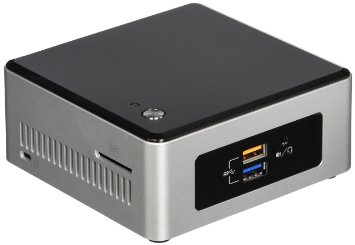

Intel® NUC Kit NUC5CPYH Essentials Product Collection Intel® NUC Kit with Intel® Celeron® Processors Code Name Products formerly Pinnacle Canyon Status Launched Launch Date Q3'15 Expected Discontinuance See Roadmap Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor 2.5" Drive # of Internal Drives Supported 1 Lithography 14 nm TDP 6 W DC Input Voltage Supported 12-19 VDC Processor Included Intel® Celeron® Processor N3060 (2M Cache, up to 2.48 GHz) Warranty Period 3 yrs Supplemental Information Embedded Options Available No Description Other features: Includes SDXC card slot Memory Specifications Max Memory Size (dependent on memory type) 8 GB Memory Types DDR3L-1333/1600 1.35V SO-DIMM Max # of Memory Channels 1 Max Memory Bandwidth 12.8 GB/s Max # of DIMMs 1 ECC Memory Supported ‡ No Graphics Specifications Integrated Graphics ‡ Yes Graphics Output VGA (HDB15); HDMI 1.4b Intel® Clear Video Technology Yes # of Displays Supported ‡ 2 Expansion Options PCI Express Revision Gen2 PCI Express Configurations ‡ M.2 slot with PCIe x1 lane Removable Memory Card Slot SDXC with UHS-I support M.2 Card Slot (wireless) 22x30 I/O Specifications USB Revision 2.0, 3.0 # of USB Ports 6 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total # of SATA Ports 1 Max # of SATA 6.0 Gb/s Ports 1 Audio (back channel + front channel) 7.1 digital (HDMI); L+R+mic (F); L+R+TOSLINK (R) Integrated LAN Realtek 8111HN Integrated Wireless Intel® Wireless-AC 3165 + Bluetooth 4.2 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes S/PDIF Out Connector TOSLINK Additional Headers 2x USB2.0, AUX_PWR Package Specifications Chassis Dimensions 115 x 111 x 52mm Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® vPro™ Technology ‡ No TPM No Intel® HD Audio Technology Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Platform Trust Technology (Intel® PTT) Yes Products Intel® NUC with 11th Generation Processor Intel® NUC kit NUC11PAHi3 Intel® NUC kit NUC11PAHi5 Intel® NUC kit NUC11PAHi7 Intel® NUC with 10th Generation Processor Intel® NUC kit NUC10i3FNH Intel® NUC kit NUC10i5FNH Intel® NUC kit NUC10i7FNH Intel® NUC with 8th Generation Processor Intel® NUC kit NUC8i3BEH Intel® NUC kit NUC8i3BEK Intel® NUC kit NUC8i5BEH Intel® NUC kit NUC8i5BEK Intel® NUC kit NUC8i7BEH Intel® NUC with 7th Generation Processor Intel® NUC kit NUC7CJYH Intel® NUC kit NUC7i3BNH Intel® NUC kit NUC7i3BNK Intel® NUC kit NUC7i3DNHE Intel® NUC kit NUC7i3DNKE Intel® NUC kit NUC7I7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i5BNK Intel® NUC kit NUC7i5DNHE Intel® NUC kit NUC7i5DNKE Intel® NUC kit NUC7i7BNH Intel® NUC kit NUC7i7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i7DNHE Intel® NUC kit NUC7i7DNKE Intel® NUC kit NUC7PJYH Intel® NUC with 6th Generation Processor Intel® NUC kit NUC6CAYH Intel® NUC kit NUC6CAYS Intel® NUC kit NUC6i3SYH Intel® NUC kit NUC6i3SYK Intel® NUC kit NUC6i5SYH Intel® NUC kit NUC6i5SYK Intel® NUC kit NUC6i7KYK Intel® NUC with 5th Generation Processor Intel® NUC kit NUC5CPYH Intel® NUC kit NUC5i3MYHE Intel® NUC kit NUC5i3RYH Intel® NUC kit NUC5i3RYK Intel® NUC kit NUC5i5MYHE Intel® NUC kit NUC5i5RYH Intel® NUC kit NUC5i5RYK Intel® NUC kit NUC5i7RYH Intel® NUC kit NUC5PGYH Intel® NUC kit NUC5PPYH
