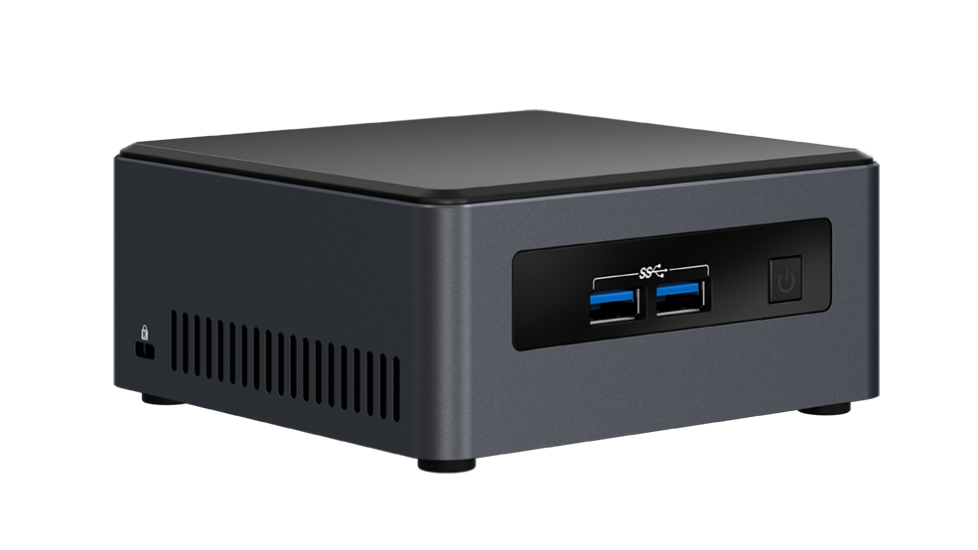

Intel® NUC Kit NUC7i5DNKE Essentials Product Collection Intel® NUC Kit with 7th Generation Intel® Core™ Processors Code Name Products formerly Dawson Canyon Status Launched Launch Date Q3'17 Expected Discontinuance See Roadmap Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor M.2 and 2.5" Drive # of Internal Drives Supported 2 TDP 15 W DC Input Voltage Supported 12-24 VDC Processor Included Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz) Warranty Period 3 yrs Supplemental Information Embedded Options Available Yes Description 7th Gen Commercial Intel® NUC Memory Specifications Max Memory Size (dependent on memory type) 32 GB Memory Types DDR4-2133 1.2V SO-DIMM Max # of Memory Channels 2 Max # of DIMMs 2 ECC Memory Supported ‡ No Graphics Specifications Integrated Graphics ‡ Yes Graphics Output Dual HDMI 2.0a, 4-lane eDP 1.4 Intel® Clear Video Technology Yes # of Displays Supported ‡ 2 Expansion Options PCI Express Revision Gen 3 PCI Express Configurations ‡ PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot PCIe Mini Card Slot (Half Length) 1 PCIe Mini Card Slot (Full Length) 1 I/O Specifications USB Revision 2.0, 3.0 # of USB Ports 4 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 1 Total # of SATA Ports 2 Max # of SATA 6.0 Gb/s Ports 2 Integrated LAN Intel® i219-LM 10/100/1000 Mbps Ethernet Integrated Wireless Intel® Wireless-AC 8265 (IEEE 802.11ac 2x2) Integrated Bluetooth Yes Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector Package Specifications Chassis Dimensions 115 x 111 x 52 mm Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® vPro™ Technology ‡ Yes TPM Yes Intel® HD Audio Technology Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Rapid Storage Technology Yes Intel® Platform Trust Technology (Intel® PTT) Yes Intel® Data Protection Technology Intel® AES New Instructions Yes Products Intel® NUC with 11th Generation Processor Intel® NUC kit NUC11PAHi3 Intel® NUC kit NUC11PAHi5 Intel® NUC kit NUC11PAHi7 Intel® NUC with 10th Generation Processor Intel® NUC kit NUC10i3FNH Intel® NUC kit NUC10i5FNH Intel® NUC kit NUC10i7FNH Intel® NUC with 8th Generation Processor Intel® NUC kit NUC8i3BEH Intel® NUC kit NUC8i3BEK Intel® NUC kit NUC8i5BEH Intel® NUC kit NUC8i5BEK Intel® NUC kit NUC8i7BEH Intel® NUC with 7th Generation Processor Intel® NUC kit NUC7CJYH Intel® NUC kit NUC7i3BNH Intel® NUC kit NUC7i3BNK Intel® NUC kit NUC7i3DNHE Intel® NUC kit NUC7i3DNKE Intel® NUC kit NUC7I7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i5BNK Intel® NUC kit NUC7i5DNHE Intel® NUC kit NUC7i5DNKE Intel® NUC kit NUC7i7BNH Intel® NUC kit NUC7i7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i7DNHE Intel® NUC kit NUC7i7DNKE Intel® NUC kit NUC7PJYH Intel® NUC with 6th Generation Processor Intel® NUC kit NUC6CAYH Intel® NUC kit NUC6CAYS Intel® NUC kit NUC6i3SYH Intel® NUC kit NUC6i3SYK Intel® NUC kit NUC6i5SYH Intel® NUC kit NUC6i5SYK Intel® NUC kit NUC6i7KYK Intel® NUC with 5th Generation Processor Intel® NUC kit NUC5CPYH Intel® NUC kit NUC5i3MYHE Intel® NUC kit NUC5i3RYH Intel® NUC kit NUC5i3RYK Intel® NUC kit NUC5i5MYHE Intel® NUC kit NUC5i5RYH Intel® NUC kit NUC5i5RYK Intel® NUC kit NUC5i7RYH Intel® NUC kit NUC5PGYH Intel® NUC kit NUC5PPYH
