Intel NUC Systems

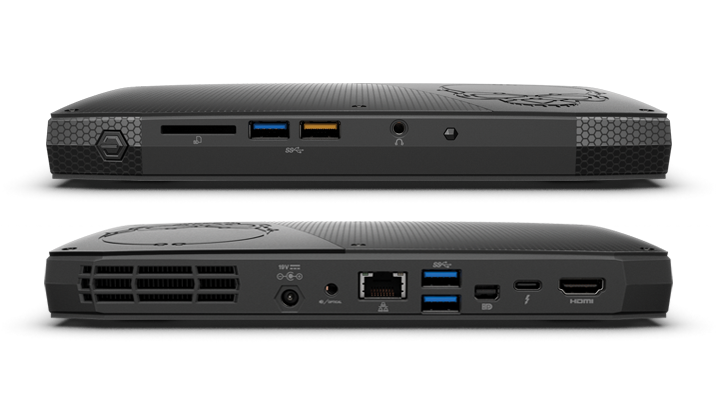

Intel® NUC Kit NUC6i7KYK

Product Collection Intel® NUC Kits
Status Launched
Expected Discontinuance
See Roadmap
Socket Soldered-down BGA
# of Internal Drives Supported 2
45 W
Warranty Period 3 yrs
Code Name Products formerly Skull Canyon
Launch Date Q2'16
Board Form Factor UCFF (4" x 5")
Internal Drive Form Factor
Lithography 14 nm
DC Input Voltage Supported 19 VDC
Processor Included Intel® Core™ i7-6770HQ Processor (6M Cache, up to 3.50 GHz)
Supplemental Information
Embedded Options Available No
Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Max # of Memory Channels 2
Max # of DIMMs 2
Memory Types DDR4-2133+ 1.2V, 1.35V SO-DIMM
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ No
Graphics Specifications
Integrated Graphics ‡ Yes
Intel® Clear Video Technology Yes
Graphics Output Mini-DP 1.2; HDMI 2.0; USB-C (DP1.2)
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision Gen3
Removable Memory Card Slot SDXC with UHS-I support
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
M.2 Card Slot (storage) 2x 22x42/80
I/O Specifications
USB Revision 2.0, 3.0, 3.1
USB 2.0 Configuration (External + Internal) 0 + 2
Total # of SATA Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Integrated LAN 10/100/1000
Integrated Bluetooth Yes
S/PDIF Out Connector
# of USB Ports 9
USB 3.0 Configuration (External + Internal) 3B 2F + 2I
Max # of SATA 6.0 Gb/s Ports 2
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated Wifi Intel® Wireless-AC 8260 + BT 4.2
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
Package Specifications
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Rapid Storage Technology Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Intel® vPro Technology ‡ No
Intel® HD Audio Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Data Protection Technology
Intel® AES New Instructions Yes
