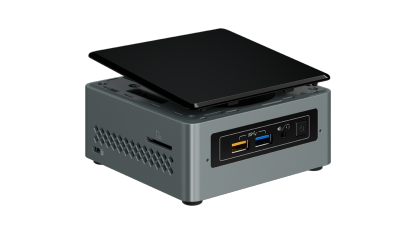

Intel® NUC Kit NUC6CAYH Essentials Product Collection Intel® NUC Kits Status Launched Expected Discontinuance See Roadmap Socket Soldered-down BGA # of Internal Drives Supported 2 TDP 10 W Warranty Period 3 yrs Code Name Products formerly Baby Canyon Launch Date Q4'16 Board Form Factor UCFF (4" x 4") Internal Drive Form Factor 2.5" Drive Lithography 14 nm DC Input Voltage Supported 12-19 VDC Processor Included Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz) Supplemental Information Embedded Options Available No Description Other features: Includes USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones Memory Specifications Max Memory Size (dependent on memory type) 8 GB Max # of Memory Channels 2 Max # of DIMMs 2 Memory Types DDR3L-1600/1866 1.35V SO-DIMM Max Memory Bandwidth 14.9 GB/s ECC Memory Supported ‡ No Graphics Specifications Integrated Graphics ‡ Yes # of Displays Supported ‡ 2 Graphics Output VGA (HDB15); HDMI 2.0 Expansion Options PCI Express Revision Gen2 Removable Memory Card Slot SDXC with UHS-I support PCI Express Configurations ‡ M.2 slot with PCIe x 1 lane M.2 Card Slot (wireless) 22x30 I/O Specifications USB Revision 2.0, 3.0 USB 2.0 Configuration (External + Internal) 0 + 2 Total # of SATA Ports 1 Integrated LAN 10/100/1000 Integrated Bluetooth Yes Additional Headers CEC, 2x USB2.0, FRONT_PANEL # of USB Ports 6 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Max # of SATA 6.0 Gb/s Ports 1 Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) Integrated Wifi Intel® Wireless-AC 8265 + BT 4.2 Consumer Infrared Rx Sensor Yes S/PDIF Out Connector TOSLINK Package Specifications Low Halogen Options Available See MDDS Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes TPM No Intel® Platform Trust Technology (Intel® PTT) Yes Intel® vPro Technology ‡ No Intel® HD Audio Technology Yes Intel® Platform Trust Technology (Intel® PTT) Yes Intel® Data Protection Technology Intel® AES New Instructions Yes Products Intel® NUC with 11th Generation Processor Intel® NUC kit NUC11PAHi3 Intel® NUC kit NUC11PAHi5 Intel® NUC kit NUC11PAHi7 Intel® NUC with 10th Generation Processor Intel® NUC kit NUC10i3FNH Intel® NUC kit NUC10i5FNH Intel® NUC kit NUC10i7FNH Intel® NUC with 8th Generation Processor Intel® NUC kit NUC8i3BEH Intel® NUC kit NUC8i3BEK Intel® NUC kit NUC8i5BEH Intel® NUC kit NUC8i5BEK Intel® NUC kit NUC8i7BEH Intel® NUC with 7th Generation Processor Intel® NUC kit NUC7CJYH Intel® NUC kit NUC7i3BNH Intel® NUC kit NUC7i3BNK Intel® NUC kit NUC7i3DNHE Intel® NUC kit NUC7i3DNKE Intel® NUC kit NUC7I7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i5BNK Intel® NUC kit NUC7i5DNHE Intel® NUC kit NUC7i5DNKE Intel® NUC kit NUC7i7BNH Intel® NUC kit NUC7i7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i7DNHE Intel® NUC kit NUC7i7DNKE Intel® NUC kit NUC7PJYH Intel® NUC with 6th Generation Processor Intel® NUC kit NUC6CAYH Intel® NUC kit NUC6CAYS Intel® NUC kit NUC6i3SYH Intel® NUC kit NUC6i3SYK Intel® NUC kit NUC6i5SYH Intel® NUC kit NUC6i5SYK Intel® NUC kit NUC6i7KYK Intel® NUC with 5th Generation Processor Intel® NUC kit NUC5CPYH Intel® NUC kit NUC5i3MYHE Intel® NUC kit NUC5i3RYH Intel® NUC kit NUC5i3RYK Intel® NUC kit NUC5i5MYHE Intel® NUC kit NUC5i5RYH Intel® NUC kit NUC5i5RYK Intel® NUC kit NUC5i7RYH Intel® NUC kit NUC5PGYH Intel® NUC kit NUC5PPYH
