Intel NUC Systems

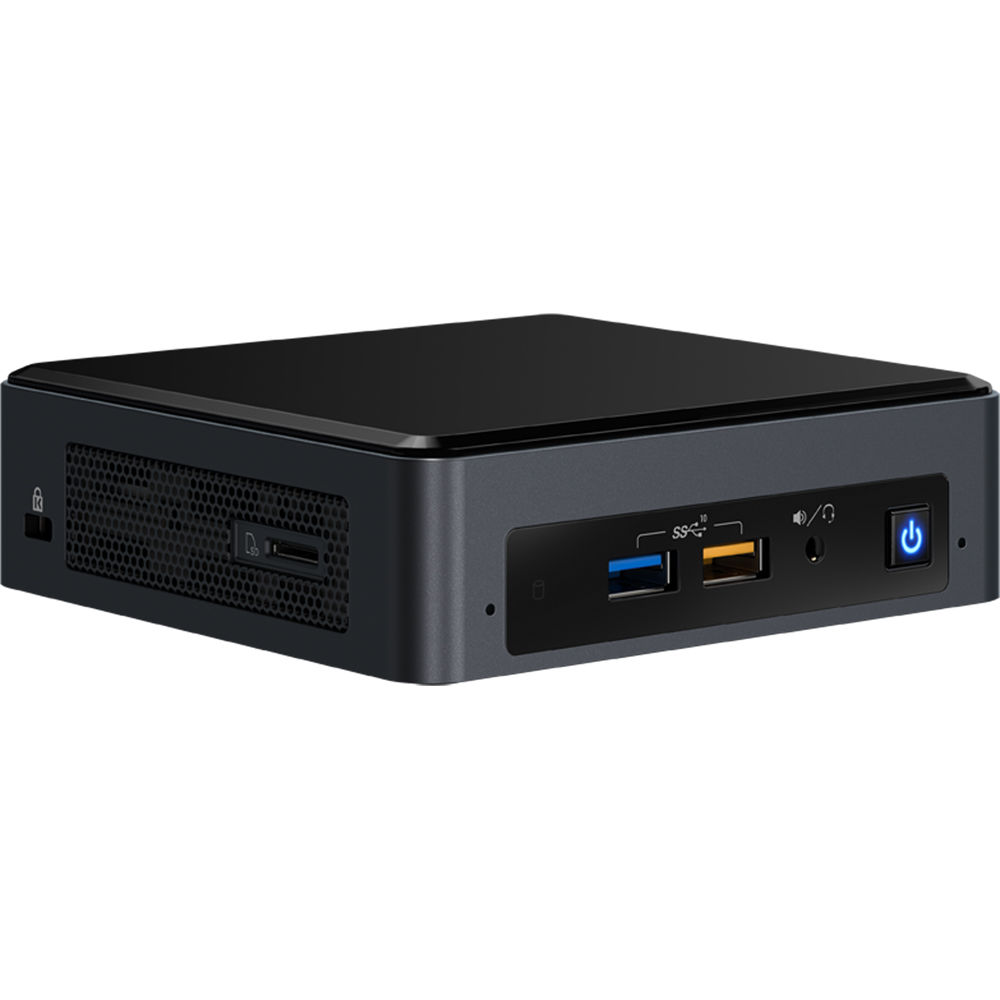

Intel® NUC Kit NUC8i3BEK

Essentials
Product Collection	Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name	Products formerly BEAN CANYON
Status	Launched
Launch Date	Q3'18
Board Form Factor	UCFF (4" x 4")
Socket	Soldered-down BGA

Internal Drive Form Factor	M.2 SSD
# of Internal Drives Supported	1
Lithography	14 nm
TDP	28 W
DC Input Voltage Supported	12-19 VDC
Processor Included	Intel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz)
Warranty Period	3 yrs

Supplemental Information
Embedded Options Available	No
Description	Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory Specifications
Max Memory Size (dependent on memory type)	32 GB
Memory Types	DDR4-2400 1.2V SO-DIMM

Max # of Memory Channels	2
Max Memory Bandwidth	38.4 GB/s
Max # of DIMMs	2
ECC Memory Supported ‡	No

Graphics Specifications
Integrated Graphics ‡	Yes

Graphics Output	HDMI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡	3

Expansion Options
Removable Memory Card Slot	microSDXC with UHS-I support
PCI Express Revision	Gen3

PCI Express Configurations‡	M.2 slot with PCIe X4 lanes
M.2 Card Slot (storage)	22x42/80

I/O Specifications
# of USB Ports	6
USB Configuration	2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision	2.0, 3.0
USB 2.0 Configuration (External + Internal)	0 + 2
USB 3.0 Configuration (External + Internal)	2B 2F + 0
Total # of SATA Ports	2

Max # of SATA 6.0 Gb/s Ports	2
Audio (back channel + front channel)	7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN	10/100/1000
Integrated Wifi	Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
Additional Headers	CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports	1

Advanced Technologies
Intel® Optane™ Memory Supported ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® vPro™ Technology ‡	No
TPM	No

Intel® HD Audio Technology	Yes
Intel® Rapid Storage Technology	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes

Security & Reliability
Intel® AES New Instructions	Yes
