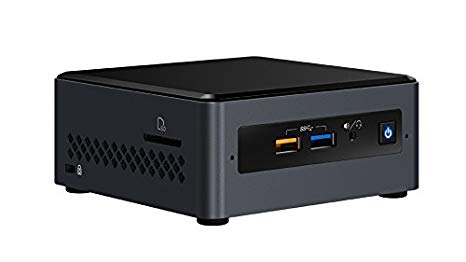

Intel® NUC Kit NUC7PJYH Essentials Product Collection Intel® NUC Kit with Intel® Pentium® Processors Code Name Products formerly JUNE CANYON Status Launched Launch Date Q1'18 Board Form Factor UCFF (4" x 4") Socket Soldered-down BGA Internal Drive Form Factor 2.5" Drive # of Internal Drives Supported 1 Lithography 14 nm TDP 10 W DC Input Voltage Supported 12-19 VDC Processor Included Intel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz) Warranty Period 3 yrs Supplemental Information Embedded Options Available No Description Other features: Includes SDXC card slot, dual microphones Memory Specifications Max Memory Size (dependent on memory type) 8 GB Memory Types DDR4-2400 1.2V SO-DIMM Max # of Memory Channels 2 Max Memory Bandwidth 38.4 GB/s Max # of DIMMs 2 ECC Memory Supported ‡ No Graphics Specifications Integrated Graphics ‡ Yes Graphics Output 2x HDMI 2.0a # of Displays Supported ‡ 2 Expansion Options Removable Memory Card Slot SDXC with UHS-I support I/O Specifications USB Revision 2.0, 3.0 # of USB Ports 6 USB 2.0 Configuration (External + Internal) 0 + 2 USB 3.0 Configuration (External + Internal) 2B 2F + 0 Total # of SATA Ports 1 Max # of SATA 6.0 Gb/s Ports 2 RAID Configuration N/A Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) Integrated LAN 10/100/1000 Integrated Wifi Intel® Wireless-AC 9462 + Bluetooth 5.0 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes S/PDIF Out Connector TOSLINK Additional Headers CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® vPro™ Technology ‡ No TPM No Intel® HD Audio Technology Yes Security & Reliability Intel® AES New Instructions Yes Products Intel® NUC with 11th Generation Processor Intel® NUC kit NUC11PAHi3 Intel® NUC kit NUC11PAHi5 Intel® NUC kit NUC11PAHi7 Intel® NUC with 10th Generation Processor Intel® NUC kit NUC10i3FNH Intel® NUC kit NUC10i5FNH Intel® NUC kit NUC10i7FNH Intel® NUC with 8th Generation Processor Intel® NUC kit NUC8i3BEH Intel® NUC kit NUC8i3BEK Intel® NUC kit NUC8i5BEH Intel® NUC kit NUC8i5BEK Intel® NUC kit NUC8i7BEH Intel® NUC with 7th Generation Processor Intel® NUC kit NUC7CJYH Intel® NUC kit NUC7i3BNH Intel® NUC kit NUC7i3BNK Intel® NUC kit NUC7i3DNHE Intel® NUC kit NUC7i3DNKE Intel® NUC kit NUC7I7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i5BNK Intel® NUC kit NUC7i5DNHE Intel® NUC kit NUC7i5DNKE Intel® NUC kit NUC7i7BNH Intel® NUC kit NUC7i7BNHX1 with Intel® Optane™ Memory Intel® NUC kit NUC7i7DNHE Intel® NUC kit NUC7i7DNKE Intel® NUC kit NUC7PJYH Intel® NUC with 6th Generation Processor Intel® NUC kit NUC6CAYH Intel® NUC kit NUC6CAYS Intel® NUC kit NUC6i3SYH Intel® NUC kit NUC6i3SYK Intel® NUC kit NUC6i5SYH Intel® NUC kit NUC6i5SYK Intel® NUC kit NUC6i7KYK Intel® NUC with 5th Generation Processor Intel® NUC kit NUC5CPYH Intel® NUC kit NUC5i3MYHE Intel® NUC kit NUC5i3RYH Intel® NUC kit NUC5i3RYK Intel® NUC kit NUC5i5MYHE Intel® NUC kit NUC5i5RYH Intel® NUC kit NUC5i5RYK Intel® NUC kit NUC5i7RYH Intel® NUC kit NUC5PGYH Intel® NUC kit NUC5PPYH
